    Ducted heat pump upgrade in Redwood, Christchurch

    Replacing 20+ year old wall-mounted units with a high-capacity Mitsubishi Electric ducted heat pump system.

    Project Overview

    Upgrading to whole-home ducted comfort

    A two-storey home in Redwood, Christchurch, previously relied on two Panasonic wall-mounted heat pumps, both more than 20 years old. With one unit no longer working, the project moved to a Mitsubishi Electric ducted system serving the home's bedrooms and living spaces.

    System Specifications

    Project details at a glance

    LocationRedwood, Christchurch
    Property TypeTwo storeys · 4 bedrooms & living areas
    Previous EquipmentTwo Panasonic wall heat pumps (20+ yrs)
    New Indoor UnitMitsubishi Electric PEAD-M140JAA
    Nominal Capacity16.0 kW Heating / 14.0 kW Cooling
    System ControllerMitsubishi Electric PAR-41MAA
    Return-Air SetupThree grilles (750×400 mm, 400×400 mm, 300×300 mm)

    Equipment Selection

    From individual units to a ducted system

    The upgrade centres on a Mitsubishi Electric PEAD-M140JAA ducted indoor unit, with nominal heating capacity of 16.0 kW and cooling capacity of 14.0 kW. A PAR-41MAA wired wall controller provides the system's controls.

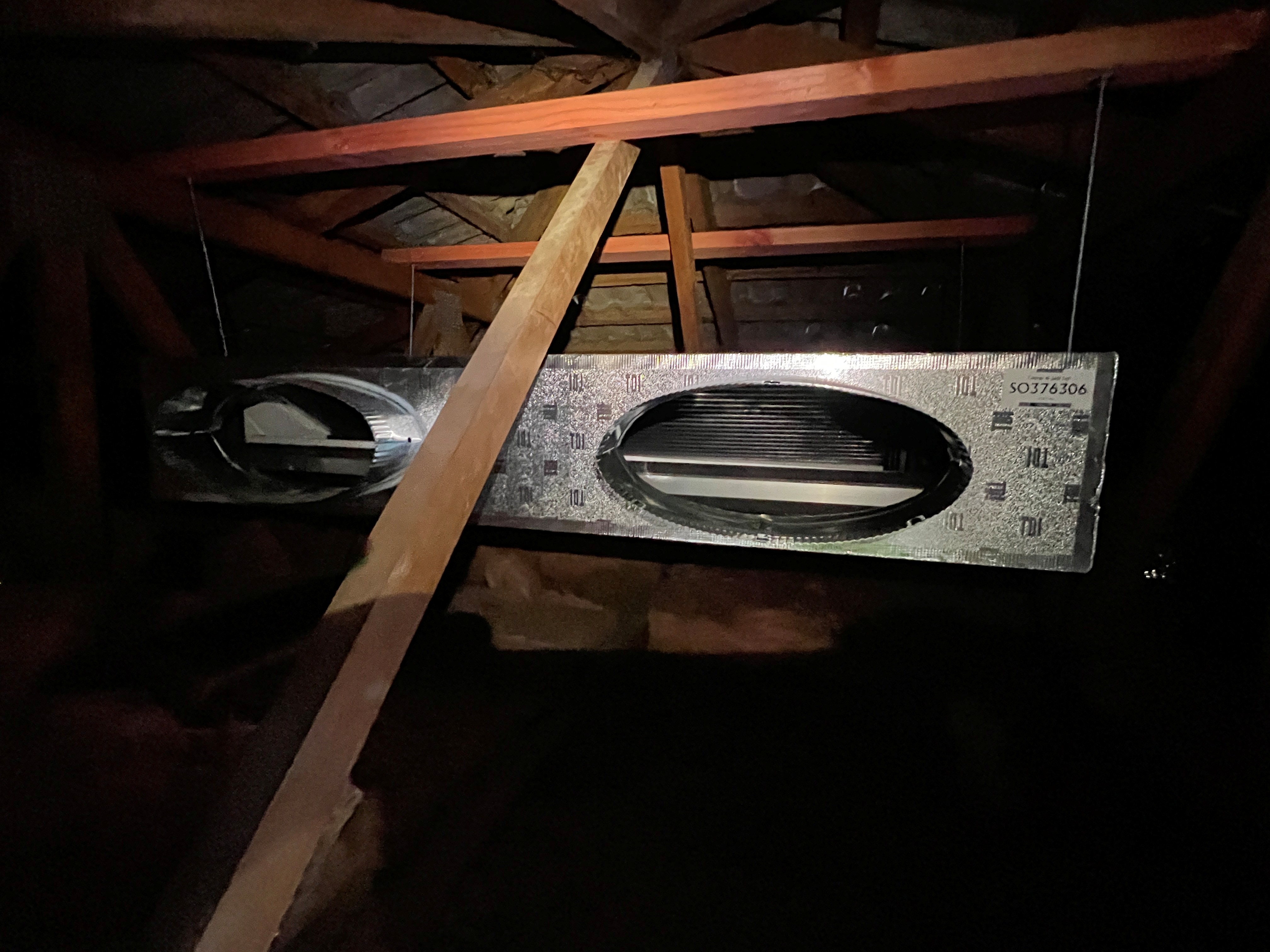

    Ducted indoor unit and insulated connection plenum in the Redwood roof space during installation.
    During installation: roof-space equipment before the duct connections were completed.

    Duct & Airflow Strategy

    Planning the air distribution

    Heat Pump Upgrade Co's design scope covered duct sizes, branches, airflow and grille locations. The return-air arrangement comprises three grilles: one 750 × 400 mm, one 400 × 400 mm and one 300 × 300 mm.

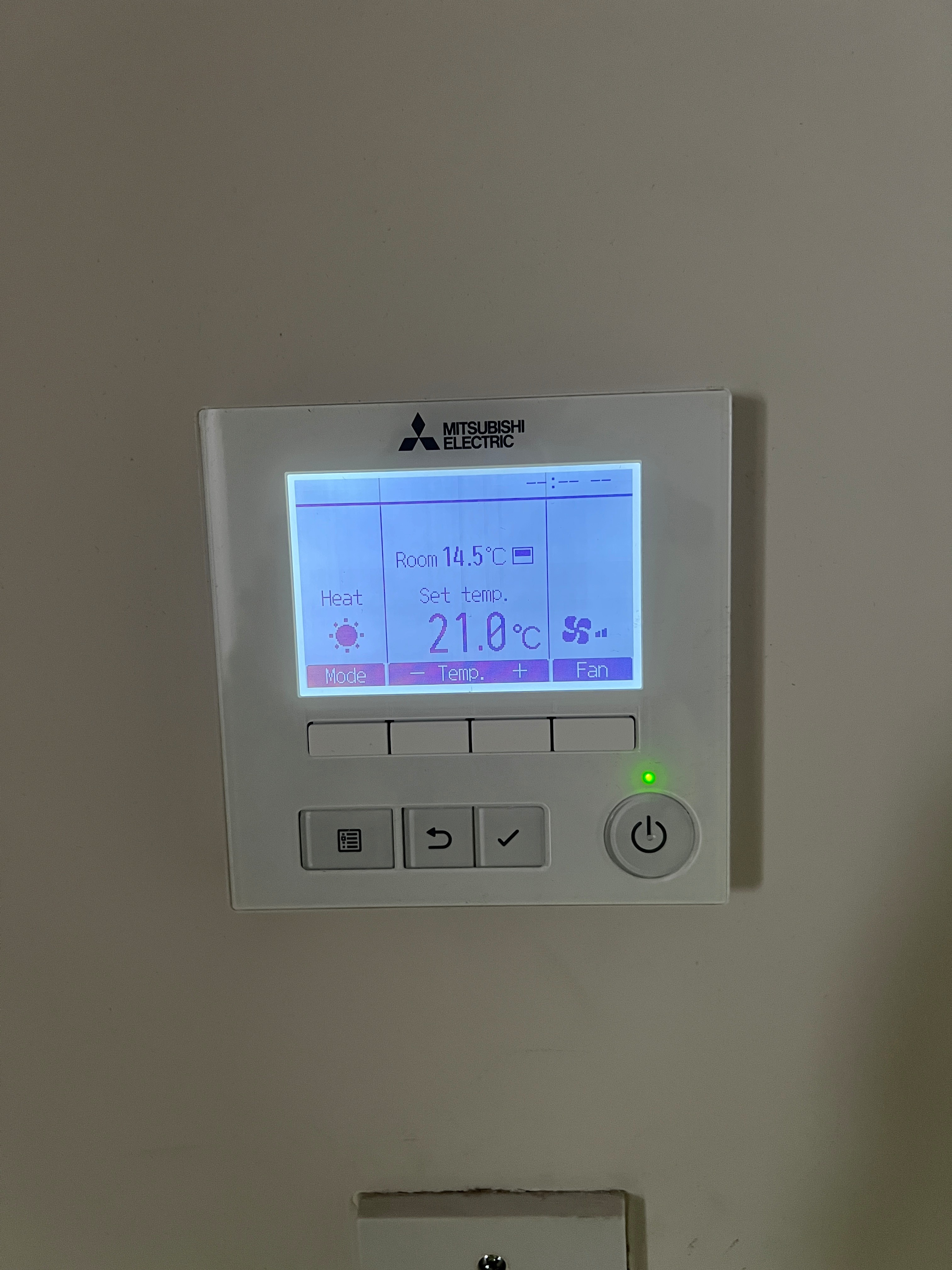

    Mitsubishi Electric PAR-41 wired wall controller at the Redwood home.
    The system's wired wall controller.

    Room-by-Room Design

    Designed room by room

    Each conditioned area was assessed individually, with its design heat load and required airflow mapped onto the home's floor plan. The duct layout then identified the proposed supply locations, duct diameters and routing needed to distribute air across both storeys.

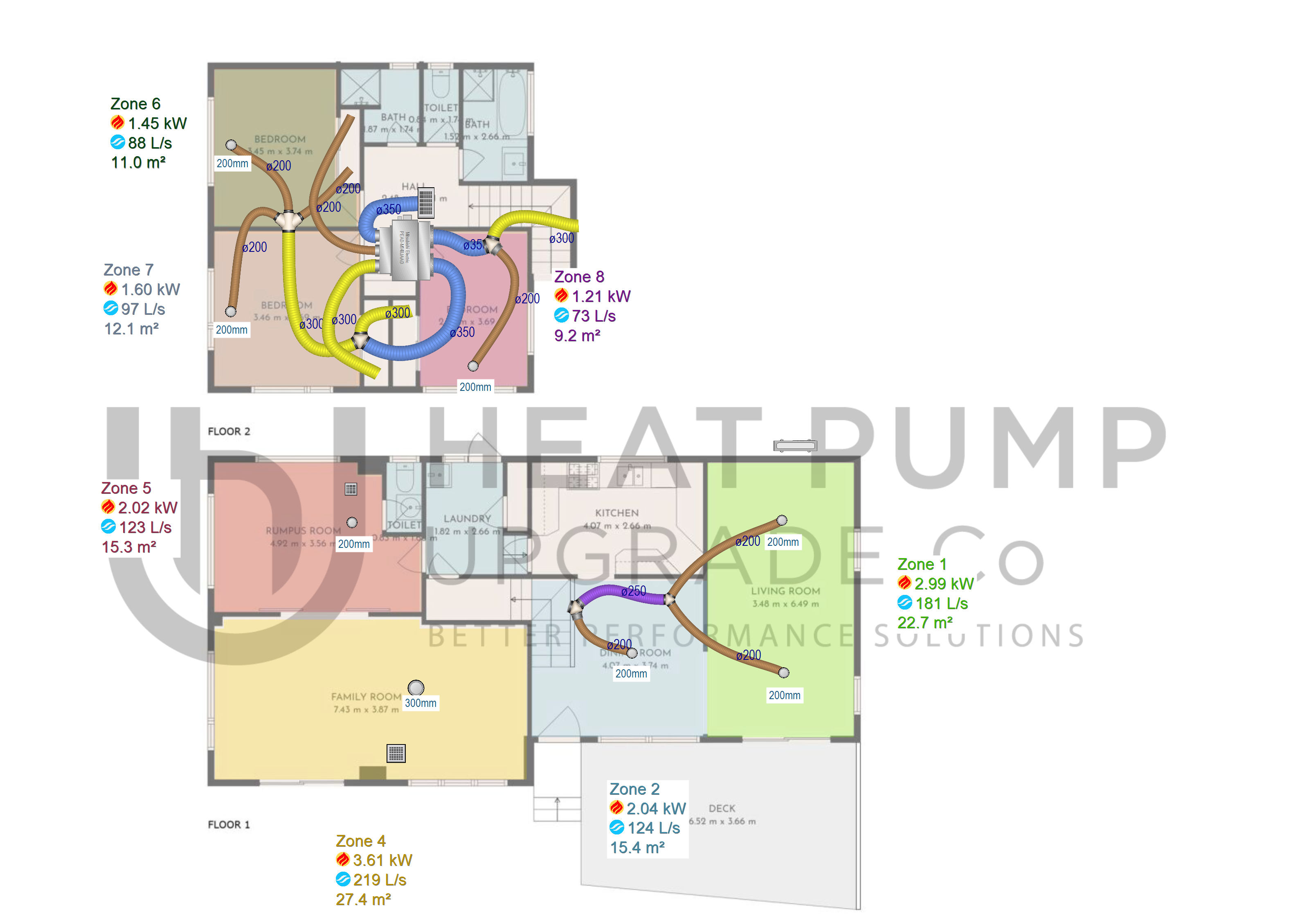

    Redwood system design showing the room-by-room heat loads, required airflows, supply locations and proposed duct routing across both floors.

    Red figures represent design heating loads in kW, blue figures represent required airflow in L/s, and the duct labels show nominated diameters.

    Client Feedback

    What the client said

    “Incredible service! Friendly, knows what he is talking about and is very responsive. A couple of things changed during the job and Daniel was very accommodating. He designed and installed a ducted heating solution for my 2 story house and I couldn’t be more pleased with it. My house is now warm in winter and it’ll be cool in the summer. Would recommend his service”
    Andrew Deam — Redwood, ChristchurchView review on Google →

    Project Investment

    Project investment: NZ$16,000–$17,000 including GST

    Replacement of two ageing wall-mounted heat pumps with a Mitsubishi Electric ducted system serving the home's bedrooms and living areas, with ductwork, airflow and return-air arrangements designed around the two-storey property.

    This investment range reflects the completed project. Pricing for your home will depend on the system design, scope and installation conditions.
